151784

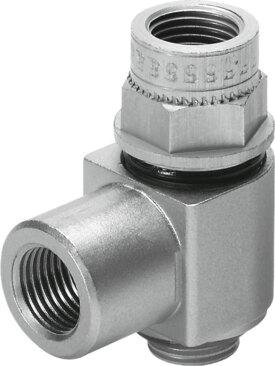

Name: Festo 151784 Elbow fitting LJK-1/8-I/I
Brand: Festo

Elbow fitting LJK-1/8-I/I

The Festo part number 151784 is an industrial component featuring a G 1/8 suction cup mounting and a G1/8 vacuum connection, weighing 25 g with any mounting position. It operates within a pressure range of -0.95 bar to 8 bar and an ambient temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [-:-:-] while maintaining VDMA24364-B1/B2-L LABS (PWIS) conformity. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 151784
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 151784.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Operating pressure: -0.95 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-]
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Product weight: 25 g
Suction cup mounting: G 1/8
Vacuum connection: G1/8

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 151784. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
