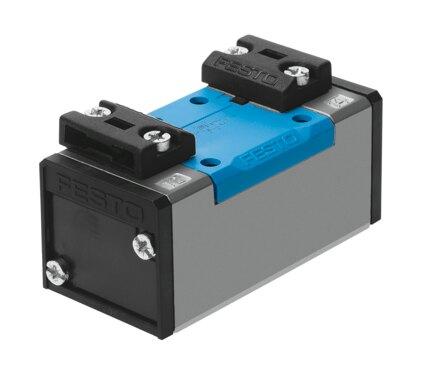

Reference imageConfirm configuration by manufacturer part number.
Festo
151845
Pneumatic valve VL-5/2-D-2-C
The Festo 151845 is a 5/2-way monostable industrial component featuring a pneumatic piston gate valve design with a direct type of control and a positive overlap lap. This UL-recognized unit delivers a normal nominal flow rate of 2300 l/min through an 11.5 mm nominal width, supporting an operating pressure range of 0.2 MPa to 1.6 MPa (2 bar to 16 bar) with a pneumatic spring reset. Built with a soft sealing principle, adjustable exhaust air function, and a non-reversible flow direction, the 54 mm wide assembly conforms to the ISO 5599-1 standard with size 2 sub-base working ports and any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151845
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151845.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Pneumatic
- Width
- 54 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2300 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1 | G3/8
- Operating pressure
- 0.2 MPa...1.6 MPa | 2 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- UL - Recognized (OL)
- Nominal width
- 11.5 mm
- Width dimension
- 56 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- None
- ISO code
- 202
- Type of control
- directly
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.2 MPa...1.6 MPa
- Pilot pressure
- 2 bar...16 bar
- Switching time off
- 39 ms
- On switching time
- 23 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
