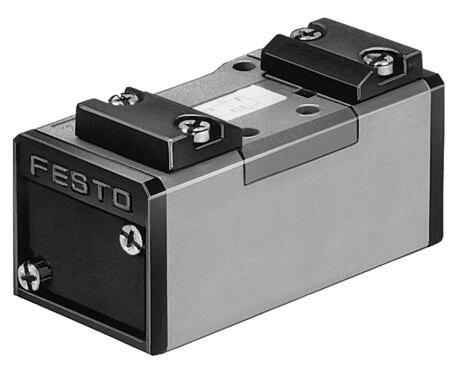

Reference imageConfirm configuration by manufacturer part number.
Festo
151846
Pneumatic valve J-5/2-D-2-C
The Festo part number 151846 is a 5/2-way bistable pneumatic industrial component featuring a piston gate valve structural design with a soft sealing principle and positive overlap. This directly controlled unit provides a normal nominal flow rate of 2300 l/min across an operating pressure range of -0.9 bar to 16 bar and accommodates an adjustable exhaust air function via an ISO 5599-1 size 2 sub-base or G3/8 pneumatic working port. Built with an 11.5 mm nominal width, 54 mm component width, and reversible flow direction, it operates with a pilot pressure of 2 bar to 16 bar in any mounting position without a manual override. Submit the exact part number, quantity, and application requirements to receive an official price and lead-time quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151846
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151846.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Pneumatic
- Width
- 54 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2300 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1 | G3/8
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Nominal width
- 11.5 mm
- Width dimension
- 56 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- None
- ISO code
- 201
- Type of control
- directly
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.2 MPa...1.6 MPa
- Pilot pressure
- 2 bar...16 bar
- Changeover time
- 8 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Noise level
- 85 dB(A)
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151846. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
