Festo
151852

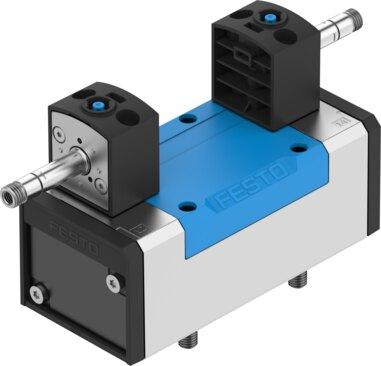

Air solenoid valve JMFH-5/2-D-2-C
The Festo 151852 is a 5/2-way bistable industrial component featuring an electrical actuation type and a piston gate valve structural design with a soft sealing principle. It delivers a normal nominal flow rate of 2300 l/min across a nominal width of 11.5 mm, operating within a pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) and supporting adjustable exhaust air function. Conforming to ISO 5599-1 with an ISO code of 255, this IP65-rated unit includes sub-base size 2 pneumatic working ports, dual manual override options, and carries c UL us recognized and DNV maritime certifications. Submit your exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151852
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151852.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 54 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2300 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1 | G3/8
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65
- Nominal width
- 11.5 mm
- Width dimension
- 56 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 255
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Suitability for vacuum
- No
- Changeover time
- 18 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse on 1 signal
- 3700 µs
