Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

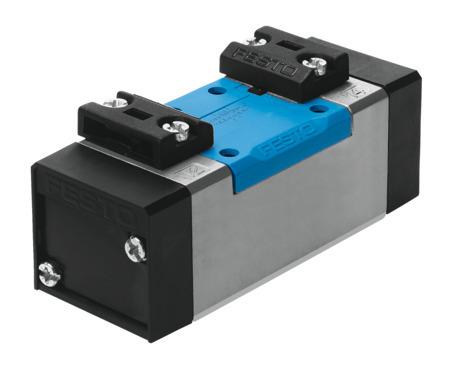

Reference imageConfirm configuration by manufacturer part number.
Festo
151868
Pneumatic valve VL-5/3E-D-3-C
The Festo 151868 is a pneumatic 5/3 exhausted piston gate valve featuring a direct control type, mechanical spring reset, and positive overlap with a nominal width of 14.5 mm and a normal nominal flow rate of 4600 l/min. Built with a soft sealing principle and an adjustable exhaust air function, this ISO 5599-1 compliant component operates within a pressure range of -0.09 MPa to 1.6 MPa and includes sub-base size 3 or G1/2 pneumatic working ports with dimensions of 65 mm in width and a width dimension of 71 mm. Certified as c UL us recognized (OL), it utilizes an ISO 308 code, features no manual override, allows reversible flow direction, and mounts in any position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 151868
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151868.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Pneumatic
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4600 l/min
- Pneumatic working port
- Sub-base, size 3 as per ISO 5599-1 | G1/2
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Nominal width
- 14.5 mm
- Width dimension
- 71 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- None
- ISO code
- 308
- Type of control
- directly
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1.6 MPa
- Pilot pressure
- 3 bar...16 bar
- Switching time off
- 63 ms
- On switching time
- 18 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 151868. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
