Festo
151909
Plug socket with cable KMPYE-5
Festo Plug socket with cable KMPYE-5, part number 151909, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 151909
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151909.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Conforms to standard
- EN 61076-2-101
- Cable designation
- With accessories
- Product weight
- 305 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight

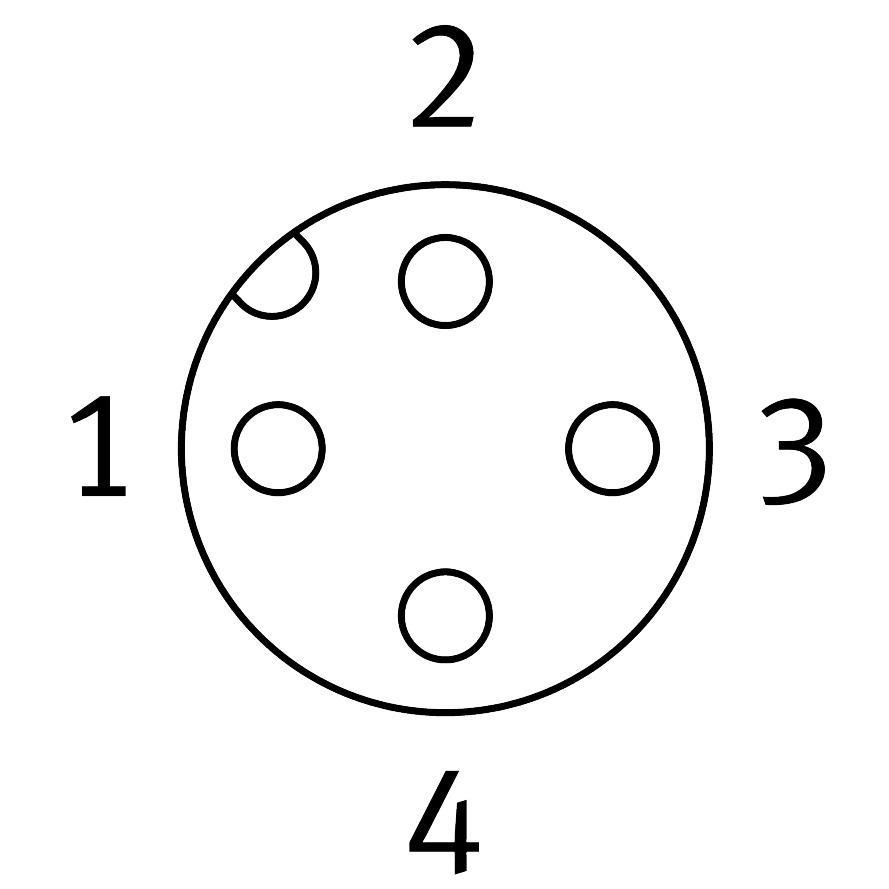

- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF 18 and longitudinal knurl
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 24 V
- Current rating
- 4 A
- Surge resistance
- 2.5 kV
- Shield
- Yes
- Cable length
- 5 m
- Connector cable test conditions
- Test conditions on request
- Bending radius, exible cable installation
- 90 mm
- Cable diameter
- 6.2 mm
- Cable diameter tolerance
- ± 0.3 mm
- Cable design
- 4 x 0.25 mm²
- Nominal conductor cross section
- 0.25 mm²
- Wire ends
- Cut off bluntly
- Degree of protection
- IP65
