Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
15233

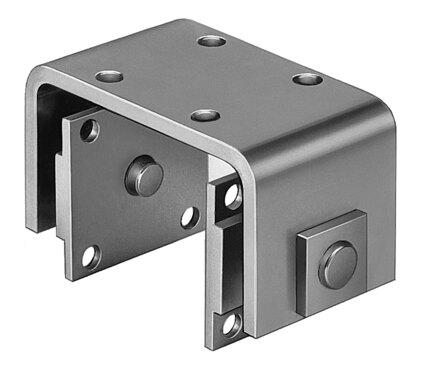

Moment compensator FKG-16-B
The Festo part number 15233 is a size 16 industrial component featuring a wrought aluminum alloy and galvanized steel moment compensator, galvanized steel clevis, and brass sliding piece with a total product weight of 257 g. This assembly accommodates a radial deviation of plus or minus 1 mm and supports a long-term maximum permissible load in the direction of force of plus or minus 240 N within an ambient temperature range of -20 °C to 120 °C. It carries a corrosion resistance class of CRC 2 for moderate corrosion stress and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 15233
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 15233.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Radial deviation +/-
- 1 mm
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...120 °C
- Long-term maximum permissible load in direction of force +/-
- 240 N
- Product weight
- 257 g
- Moment compensator material
- Wrought aluminum alloy, anodized | Galvanized steel
- Clevis material
- Steel | Galvanized
- Sliding piece material
- Brass
- Official Festo technical specifications
- Size 16 Radial deviation +/- 1 mm Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -20 °C...120 °C Long-term maximum permissible load in direction of force +/- 240 N Product weight 257 g Moment compensator material Wrought aluminum alloy, anodized Galvanized steel Clevis material Steel Galvanized Sliding piece material Brass 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 15233. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
