Festo
15235

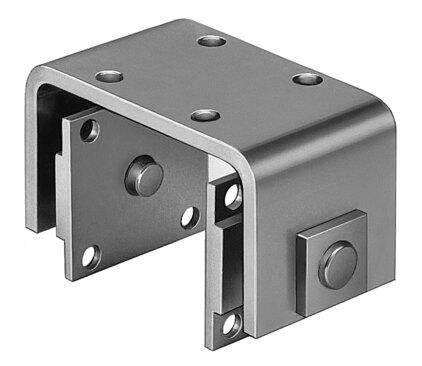

Moment compensator FKG-40-B
The Festo 15235 industrial component is a Size 40 moment compensator featuring an anodized wrought aluminum alloy and galvanized steel moment compensator material, a galvanized steel clevis, and a brass sliding piece. This unit weighs 1227 g, supports a long-term maximum permissible load in the direction of force of plus or minus 1600 N, and accommodates a radial deviation of plus or minus 1 mm. Operating within an ambient temperature range of -20 °C to 120 °C, it conforms to VDMA24364-B2-L LABS (PWIS) standards and achieves a corrosion resistance class of CRC 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 15235
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 15235.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Radial deviation +/-
- 1 mm
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...120 °C
- Long-term maximum permissible load in direction of force +/-
- 1600 N
- Product weight
- 1227 g
- Moment compensator material
- Wrought aluminum alloy, anodized | Galvanized steel
- Clevis material
- Steel | Galvanized
- Sliding piece material
- Brass
- Official Festo technical specifications
- Size 40 Radial deviation +/- 1 mm Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -20 °C...120 °C Long-term maximum permissible load in direction of force +/- 1600 N Product weight 1227 g Moment compensator material Wrought aluminum alloy, anodized Galvanized steel Clevis material Steel Galvanized Sliding piece material Brass 6/5/26 –
