Festo
152562

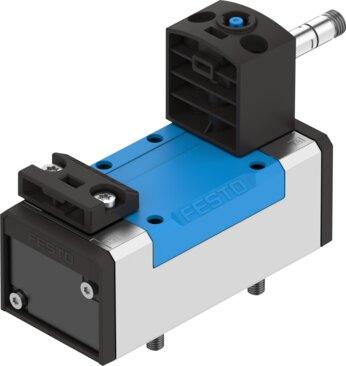

Air solenoid valve MFH-5/2-D-1-S-C
The Festo 152562 is a 5/2-way monostable industrial component featuring a piston gate valve structural design with an 8 mm nominal width and a 42 mm width. This unit supports an operating pressure range of -0.09 MPa to 1.6 MPa, a normal nominal flow rate of 1200 l/min, and incorporates an adjustable exhaust air function with a pneumatic spring reset method. It conforms to ISO 5599-1 standards, provides IP65 protection, holds c UL us and DNV maritime certifications, and accepts an operating voltage via a separately ordered solenoid coil. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 152562
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 152562.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1 | G1/4
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65
- Nominal width
- 8 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 164
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.2 MPa...1 MPa
- Pilot pressure
- 2 bar...10 bar
- Suitability for vacuum
- Yes
- Official Festo technical specifications
- Valve function 5/2-way, monostable Actuation type Electrical Width 42 mm Normal nominal ow rate (normalized to DIN 1343) 1200 l/min Pneumatic working port Sub-base, size 1 according to ISO 5599-1 G1/4 Operating voltage Via solenoid coil, to be ordered separately Operating pressure -0.09 MPa...1.6 MPa -0.9 bar...16 bar Structural design Piston gate valve Reset method Pneumatic spring Certication c UL us - recognized (OL) Maritime classication See certicate Certicate issuing authority DNV-TAA000032X UL MH19482 Degree of protection IP65 Nominal width 8 mm Width dimension 43 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Conforms to standard ISO 5599-1 Manual override Detenting via accessory Non-detenting ISO code 164 Type of control Piloted Pilot air supply port External Flow direction Reversible Lap Positive overlap Pilot pressure MPa 0.2 MPa...1 MPa Pilot pressure 2 bar...10 bar Suitability for vacuum Yes 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 152562. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
