Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas+1 417 261 6001 info@mropartsrfq.com

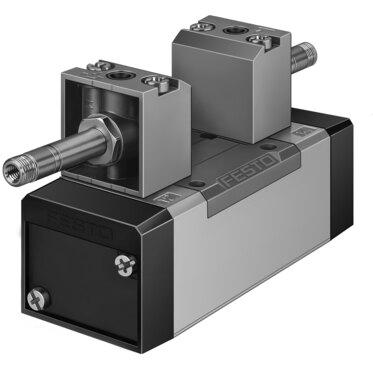

Reference imageConfirm configuration by manufacturer part number.
Festo
152564
Air solenoid valve MFH-5/3G-D-1-S-C
Festo Air solenoid valve MFH-5/3G-D-1-S-C, part number 152564, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 152564
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 152564.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1 | G1/4
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65
- Nominal width
- 8 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 169
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- Yes
- Official Festo technical specifications
- Valve function 5/3-way, closed Actuation type Electrical Width 42 mm Normal nominal ow rate (normalized to DIN 1343) 1200 l/min Pneumatic working port Sub-base, size 1 according to ISO 5599-1 G1/4 Operating voltage Via solenoid coil, to be ordered separately Operating pressure -0.09 MPa...1.6 MPa -0.9 bar...16 bar Structural design Piston gate valve Reset method Mechanical spring Certication c UL us - recognized (OL) Maritime classication See certicate Certicate issuing authority DNV-TAA000032X UL MH19482 Degree of protection IP65 Nominal width 8 mm Width dimension 43 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Conforms to standard ISO 5599-1 Manual override Detenting via accessory Non-detenting ISO code 169 Type of control Piloted Pilot air supply port External Flow direction Reversible Lap Positive overlap Pilot pressure MPa 0.3 MPa...1 MPa Pilot pressure 3 bar...10 bar Suitability for vacuum Yes 6/5/26 –
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 152564. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
