Festo
152586

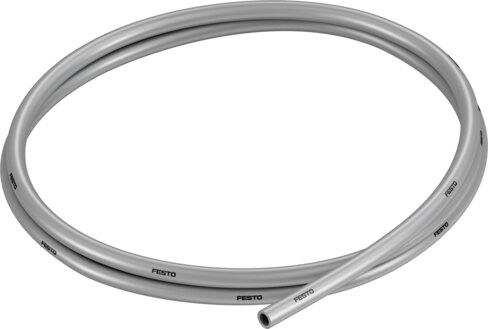

Plastic tubing PUN-6X1-SI
The Festo 152586 is a silver industrial component featuring an ester-based TPE-U pneumatic tubing construction with a 6 mm outside diameter, a 4 mm inside diameter, and a Shore hardness of D 52 +/-3. Suitable for energy chains, this RoHS-compliant tubing operates at temperatures from -35 °C to 60 °C and supports a temperature-dependent operating pressure range of -0.095 MPa to 1 MPa. Certified by TÜV under authority B 013277 0527 00, it utilizes compressed air as an operating medium according to ISO 8573-1:2010 [7:-:-] and meets UL94 HB material fire test standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 152586
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 152586.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 6 mm
- Bending radius relevant for ow rate
- 26.5 mm
- Inside diameter
- 4 mm
- Min. bending radius
- 16 mm
- Application note
- TPE-U, ester-based | The plastic tubing can only be installed in contact with cables if the | sheathing is free from phosphoric acid esters. Failure to observe this can | result in damage to the plastic tubing.
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.0192 kg/m
- Pneumatic connection
- For plug connection outside diameter 6 mm | For barbed tting, inside diameter 4 mm, with union nut | For barbed tting, inside diameter 4 mm
- Color
- Silver
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
- Official Festo technical specifications
- Outside diameter 6 mm Bending radius relevant for ow rate 26.5 mm Inside diameter 4 mm Min. bending radius 16 mm Application note TPE-U, ester-based The plastic tubing can only be installed in contact with cables if the sheathing is free from phosphoric acid esters. Failure to observe this can result in damage to the plastic tubing. Tubing characteristics Suitable for energy chains Operating pressure for entire temperature range -0.095 MPa...0.7 MPa -0.95 bar...7 bar -13.775 psi...101.5 psi Temperature-dependent operating pressure -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Certication TÜV Certicate issuing authority B 013277 0527 00 Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Material re test UL94 HB LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -35 °C...60 °C Product weight by length 0.0192 kg/m Pneumatic connection For plug connection outside diameter 6 mm For barbed tting, inside diameter 4 mm, with union nut For barbed tting, inside diameter 4 mm Color Silver Shore hardness D 52 +/-3 Note on materials RoHS compliant Material of pneumatic tubing TPE-U(PU) 6/5/26 –
