152587

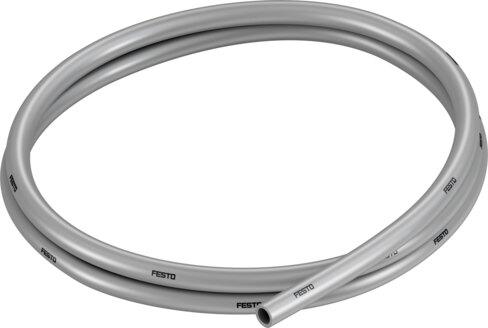

Name: Festo 152587 Plastic tubing PUN-8X1,25-SI
Brand: Festo

Plastic tubing PUN-8X1,25-SI

The Festo 152587 is a silver industrial component made of ester-based TPE-U(PU) featuring an 8 mm outside diameter and a 5.7 mm inside diameter, suitable for energy chains with a minimum bending radius of 24 mm and a flow-rate relevant bending radius of 37 mm. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -35 °C to 60 °C, supporting an operating pressure of -0.095 MPa to 0.7 MPa for the entire temperature range and up to 1 MPa for temperature-dependent applications. Certified by TÜV under authority B 013277 0527 00, this RoHS-compliant tubing meets UL94 HB material fire tests and VDMA24364-B2-L LABS conformity, with the application constraint that it can only be installed in contact with cables if the sheathing is free from phosphoric acid esters. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 152587
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 152587.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 8 mm
Bending radius relevant for ow rate: 37 mm
Inside diameter: 5.7 mm
Min. bending radius: 24 mm
Application note: TPE-U, ester-based | The plastic tubing can only be installed in contact with cables if the | sheathing is free from phosphoric acid esters. Failure to observe this can | result in damage to the plastic tubing.
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.0302 kg/m
Pneumatic connection: For plug connection outside diameter 8 mm | For barbed tting, inside diameter 6 mm, with union nut | For barbed tting, inside diameter 6 mm
Color: Silver
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
Official Festo technical specifications: Outside diameter 8 mm Bending radius relevant for ow rate 37 mm Inside diameter 5.7 mm Min. bending radius 24 mm Application note TPE-U, ester-based The plastic tubing can only be installed in contact with cables if the sheathing is free from phosphoric acid esters. Failure to observe this can result in damage to the plastic tubing. Tubing characteristics Suitable for energy chains Operating pressure for entire temperature range -0.095 MPa...0.7 MPa -0.95 bar...7 bar -13.775 psi...101.5 psi Temperature-dependent operating pressure -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Certication TÜV Certicate issuing authority B 013277 0527 00 Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Material re test UL94 HB LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -35 °C...60 °C Product weight by length 0.0302 kg/m Pneumatic connection For plug connection outside diameter 8 mm For barbed tting, inside diameter 6 mm, with union nut For barbed tting, inside diameter 6 mm Color Silver Shore hardness D 52 +/-3 Note on materials RoHS compliant Material of pneumatic tubing TPE-U(PU) 6/5/26 –
