Festo
152589

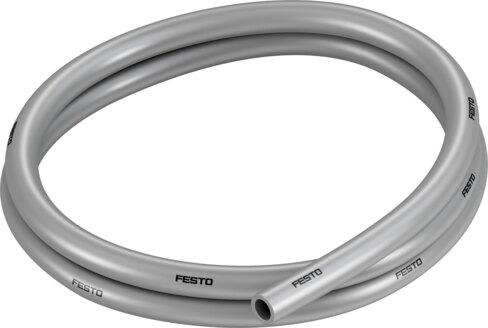

Plastic tubing PUN-12X2-SI
Manufactured by Festo, part number 152589 is an ester-based TPE-U industrial component featuring a 12 mm outside diameter, an 8 mm inside diameter, and a silver finish with a Shore hardness of D 52 +/-3. This RoHS-compliant pneumatic tubing operates within a temperature range of -35 °C to 60 °C, supports pressures from -0.95 bar to 10 bar depending on temperature, and is certified by TÜV under certificate B 013277 0527 00 for use with compressed air per ISO 8573-1:2010 [7:-:-]. Designed for energy chains with a minimum bending radius of 33 mm and a flow-relevant bending radius of 62 mm, the tubing must be installed away from cables containing phosphoric acid esters to prevent damage. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 152589
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 152589.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 12 mm
- Bending radius relevant for ow rate
- 62 mm
- Inside diameter
- 8 mm
- Min. bending radius
- 33 mm
- Application note
- TPE-U, ester-based | The plastic tubing can only be installed in contact with cables if the | sheathing is free from phosphoric acid esters. Failure to observe this can | result in damage to the plastic tubing.
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.0767 kg/m
- Pneumatic connection
- For plug connection outside diameter 12 mm
- Color
- Silver
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
- Official Festo technical specifications
- Outside diameter 12 mm Bending radius relevant for ow rate 62 mm Inside diameter 8 mm Min. bending radius 33 mm Application note TPE-U, ester-based The plastic tubing can only be installed in contact with cables if the sheathing is free from phosphoric acid esters. Failure to observe this can result in damage to the plastic tubing. Tubing characteristics Suitable for energy chains Operating pressure for entire temperature range -0.095 MPa...0.7 MPa -0.95 bar...7 bar -13.775 psi...101.5 psi Temperature-dependent operating pressure -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Certication TÜV Certicate issuing authority B 013277 0527 00 Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Material re test UL94 HB LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -35 °C...60 °C Product weight by length 0.0767 kg/m Pneumatic connection For plug connection outside diameter 12 mm Color Silver Shore hardness D 52 +/-3 Note on materials RoHS compliant Material of pneumatic tubing TPE-U(PU) 6/5/26 –
