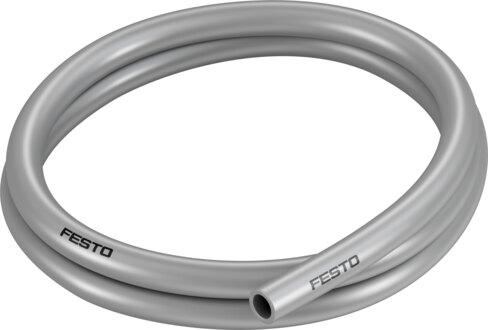

Reference imageConfirm configuration by manufacturer part number.
Festo
152590
Plastic tubing PUN-16X2,5-SI
The Festo 152590 is a silver TPE-U ester-based industrial pneumatic tubing suitable for energy chains, featuring an outside diameter of 16 mm, an inside diameter of 11 mm, and a weight of 0.1294 kg/m. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -35 °C to 60 °C, with a temperature-dependent operating pressure of -0.095 MPa to 1 MPa and a standard operating pressure of -0.095 MPa to 0.7 MPa. Certified by TÜV under authority B 013277 0527 00, this RoHS-compliant component carries a UL94 HB material fire test rating, a Shore hardness of D 52 +/-3, and VDMA24364-B2-L LABS conformity, requiring that cable sheathing in contact with the tubing is free from phosphoric acid esters. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 152590
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 152590.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 16 mm
- Bending radius relevant for ow rate
- 88 mm
- Inside diameter
- 11 mm
- Min. bending radius
- 45 mm
- Application note
- TPE-U, ester-based | The plastic tubing can only be installed in contact with cables if the | sheathing is free from phosphoric acid esters. Failure to observe this can | result in damage to the plastic tubing.
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.1294 kg/m
- Pneumatic connection
- For plug connection outside diameter 16 mm
- Color
- Silver
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
- Official Festo technical specifications
- Outside diameter 16 mm Bending radius relevant for ow rate 88 mm Inside diameter 11 mm Min. bending radius 45 mm Application note TPE-U, ester-based The plastic tubing can only be installed in contact with cables if the sheathing is free from phosphoric acid esters. Failure to observe this can result in damage to the plastic tubing. Tubing characteristics Suitable for energy chains Operating pressure for entire temperature range -0.095 MPa...0.7 MPa -0.95 bar...7 bar -13.775 psi...101.5 psi Temperature-dependent operating pressure -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Certication TÜV Certicate issuing authority B 013277 0527 00 Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Material re test UL94 HB LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -35 °C...60 °C Product weight by length 0.1294 kg/m Pneumatic connection For plug connection outside diameter 16 mm Color Silver Shore hardness D 52 +/-3 Note on materials RoHS compliant Material of pneumatic tubing TPE-U(PU) 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 152590. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
