Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

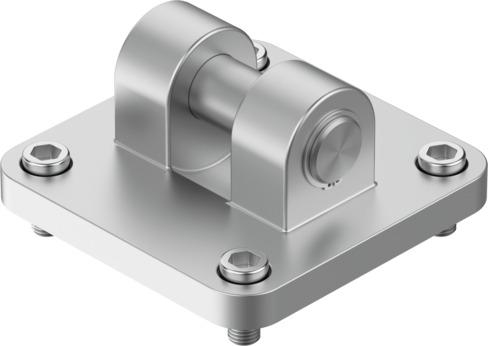

Reference imageConfirm configuration by manufacturer part number.
Festo
152598
Clevis flange SNG-200
Manufactured by Festo under part number 152598, this industrial component is built to size 200 specifications based on norm ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290). The assembly features a die-cast aluminum mounting construction with galvanized steel bolts and screws alongside a galvanized spring steel fuse, yielding a total product weight of 5160 g. It provides a corrosion resistance class (CRC) of 2 for moderate corrosion stress, VDMA24364-B2-L LABS conformity, an operating ambient temperature range of -40 °C to 150 °C, and RoHS compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 152598
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 152598.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 200
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 5160 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum
- Bolt material
- Steel | Galvanized
- Material of screws
- Steel | Galvanized
- Fuse material
- Spring steel, galvanized
- Official Festo technical specifications
- Size 200 Based on norm ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -40 °C...150 °C Product weight 5160 g Note on materials RoHS compliant Mounting material Die-cast aluminum Bolt material Steel Galvanized Material of screws Steel Galvanized Fuse material Spring steel, galvanized 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 152598. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
