Reference imageConfirm configuration by manufacturer part number.
Festo
152605

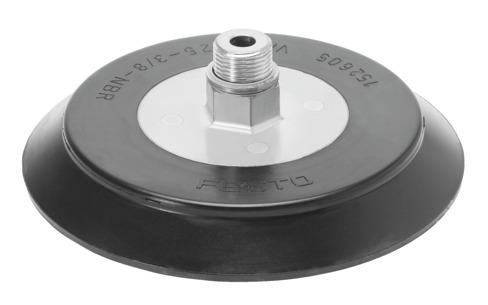

Vacuum suction cup VAS-125-3/8-NBR
This Festo industrial component, part number 152605, is a round, flat black suction cup featuring a 125 mm diameter, 105 mm effective diameter, 7 mm nominal width, and 6 mm height compensation. Designed with a 79.1 cm³ volume, 70 +/-5 Shore hardness, and G3/8 vacuum connection positioned upward, it delivers a holding force of 606 N at a nominal operating pressure of -0.07 MPa within an operating pressure range of -0.095 MPa to 0 MPa. The unit weighs 152 g, mounts via vacuum connection in any position, operates in ambient temperatures from -20 °C to 80 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-], and meets CRC 2 moderate corrosion stress alongside VDMA24364-A1-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 152605
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 152605.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 6 mm
- Nominal width
- 7 mm
- Suction cup diameter
- 125 mm
- Suction cup volume
- 79.1 cm³
- Effective suction cup diameter
- 105 mm
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -0.07 MPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 606 N
- Product weight
- 152 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G3/8
- Color
- Black
- Shore hardness
- 70 +/-5
- Material of screwed plug
- Die-cast zinc
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
- Official Festo technical specifications
- Suction cup height compensation 6 mm Nominal width 7 mm Suction cup diameter 125 mm Suction cup volume 79.1 cm³ Effective suction cup diameter 105 mm Connection position up Mounting position Any Suction cup shape Round, at Operating pressure -0.095 MPa...0 MPa -0.95 bar...0 bar -13.775 psi...0 psi Nominal operating pressure -0.07 MPa -0.7 bar -10.15 psi Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-] Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-A1-L Ambient temperature -20 °C...80 °C Holding force at nominal operating pressure 606 N Product weight 152 g Type of mounting Via vacuum connection Vacuum connection G3/8 Color Black Shore hardness 70 +/-5 Material of screwed plug Die-cast zinc Note on materials RoHS compliant Suction cup material NBR 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 152605. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
