Festo
152628

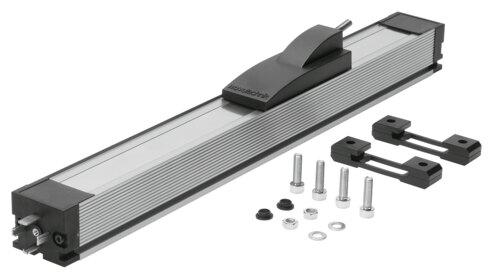

Displacement encoder MLO-POT-450-TLF
Engineered by Festo, the part number 152628 is an industrial component featuring an analog linear potentiometer measuring principle with a 450 mm stroke and a displacement resolution of 0.01 mm. This open-profile structural design includes a cover strip and sliding carriage, operating on a nominal DC voltage of 10 V with a maximum operating voltage of 42 V and an analog output signal. The unit accommodates a maximum travel speed of 10 m/s, a maximum travel acceleration of 200 m/s², an independent linearity of 0.05%, and an ambient temperature range of -30 °C to 100 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 152628
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 152628.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Measuring principle of linear potentiometer
- Analog
- Ambient temperature
- -30 °C...100 °C
- Recommended contact current
- 1 µA
- Max. short-time slider current
- 10 mA
- Max. travel speed
- 10 m/s
- Max. travel acceleration
- 200 m/s²
- Displacement resolution
- 0.01 mm
- Independent linearity
- 0.05%
- Temperature coefficient
- 5 ppm/K
- Stroke
- 450 mm
- Output signal
- Analog
- Connection resistance
- 5 kOhm
- Connection resistance tolerance
- 20 %
- Nominal operating voltage DC
- 10 V
- Max. operating voltage DC
- 42 V
- Permissible voltage uctuations
- <1%
- Max. current consumption
- 4 mA
- Electrical connection
- 4-pin | Type A | Plug | As per DIN 43650 | Rectangular design
- Structural design
- With cover strip | With sliding carriage | Open prole
- Coupling parallel quick coupling
- ± 1.5 mm
- Moment compensator angular offset
- ±1°
- Mounting position
- Any
- Product weight
- 1200 g
- Housing material
- Wrought aluminum alloy | Anodized
- Covering material
- Steel
- Official Festo technical specifications
- CE marking (see declaration of conformity) As per EU EMC directive Measuring principle of linear potentiometer Analog Ambient temperature -30 °C...100 °C Recommended contact current 1 µA Max. short-time slider current 10 mA Max. travel speed 10 m/s Max. travel acceleration 200 m/s² Displacement resolution 0.01 mm Independent linearity 0.05% Temperature coefficient 5 ppm/K Stroke 450 mm Output signal Analog Connection resistance 5 kOhm Connection resistance tolerance 20 % Nominal operating voltage DC 10 V Max. operating voltage DC 42 V Permissible voltage uctuations <1% Max. current consumption 4 mA Electrical connection 4-pin Type A Plug As per DIN 43650 Rectangular design Structural design With cover strip With sliding carriage Open prole Coupling parallel quick coupling ± 1.5 mm Moment compensator angular offset ±1° Mounting position Any Product weight 1200 g Housing material Wrought aluminum alloy Anodized Covering material Steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 152628. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
