Festo
1526825

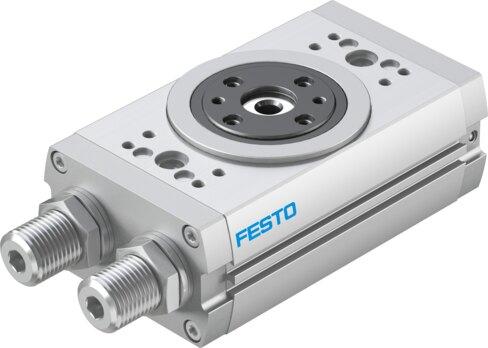

Rotary actuator DRRD-35-180-FH-PA
The Festo 1526825 is a double-acting industrial component featuring a gear rack and pinion structural design with a size 35 and a 180-degree swivel angle. Operating at pressures from 0.3 MPa to 0.8 MPa, it delivers a theoretical torque of 15.8 Nm at 6 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. This unit includes elastic cushioning rings at both ends, a 36-degree cushioning angle, and position sensing via proximity switch, with a weight of 4510 g and versatile mounting options including through-hole and internal thread. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1526825
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1526825.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 35
- Cushioning angle
- 36 deg
- Setting range of swivel angle for each end position
- +10 /-150 deg
- Swivel angle
- 180 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Gear rack/pinion
- Position sensing
- Via proximity switch
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Theoretical torque at 6 bar
- 15.8 Nm
- Permissible mass moment of inertia
- 0.25 kgm²
- Product weight
- 4510 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Drive shaft material
- Quenched and tempered steel
- Cover material
- Aluminum | Anodized
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Smooth-anodized
- Official Festo technical specifications
- Size 35 Cushioning angle 36 deg Setting range of swivel angle for each end position +10 /-150 deg Swivel angle 180 deg Cushioning Elastic cushioning rings/pads at both ends Mounting position Any Structural design Gear rack/pinion Position sensing Via proximity switch Operating pressure 0.3 MPa...0.8 MPa 3 bar...8 bar Mode of operation Double-acting Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) LABS (PWIS) conformity VDMA24364 Zone III Cleanroom suitability, measured according to ISO 14644-14 Class 5 according to ISO 14644-1 Ambient temperature -10 °C...60 °C Theoretical torque at 6 bar 15.8 Nm Permissible mass moment of inertia 0.25 kgm² Product weight 4510 g Type of mounting Alternatively: With through-hole With internal thread Pneumatic connection G1/8 Note on materials RoHS compliant Drive shaft material Quenched and tempered steel Cover material Aluminum Anodized Seals material NBR TPE-U(PU) Housing material Wrought aluminum alloy Smooth-anodized 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1526825. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
