Festo
152742

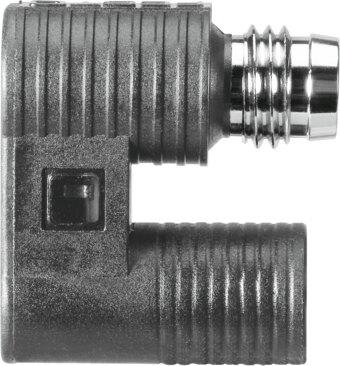

Proximity sensor SMTO-4U-PS-S-LED-24
The Festo 152742 is a round industrial component based on the EN 60947-5-2 norm that utilizes a magneto-inductive measuring principle to measure position within an ambient temperature range of -25 °C to 70 °C. It features a PNP switching output with a N.O. contact, a repetition accuracy of 0.2 mm, a 0.5 ms on and off time, an installed inductive protective circuit, a maximum output current of 200 mA, and a maximum DC switching capacity of 6 W with a 2 V voltage drop, 0.1 mA minimum load current, and 0.01 mA residual current. Certified with the RCM compliance mark, RoHS compliance note, and CE and UKCA markings as per EU and UK EMC and RoHS directives, this unit meets all specified regulatory requirements. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 152742
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 152742.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Based on norm
- EN 60947-5-2
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magneto-inductive
- Ambient temperature
- -25 °C...70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- PNP
- Switching element function
- N.O. contact
- On time
- 0.5 ms
- Switch-off time
- 0.5 ms
- Max. output current
- 200 mA
- Max. switching capacity DC
- 6 W
- Voltage drop
- 2 V
- Inductive protective circuit
- Installed
- Minimum load current
- 0.1 mA
- Residual current
- 0.01 mA
- Short-circuit protection
- Pulsed
- Overload protection
- Available
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Snap-locking | Screw-type lock | not rotatable
- Official Festo technical specifications
- Design Round Based on norm EN 60947-5-2 Certication RCM compliance mark CE marking (see declaration of conformity) As per EU EMC directive As per EU RoHS directive UKCA marking (see declaration of conformity) To UK instructions for EMC To UK RoHS instructions Note on materials RoHS compliant Measured variable Position Measuring principle Magneto-inductive Ambient temperature -25 °C...70 °C Repetition accuracy 0.2 mm Switching output PNP Switching element function N.O. contact On time 0.5 ms Switch-off time 0.5 ms Max. output current 200 mA Max. switching capacity DC 6 W Voltage drop 2 V Inductive protective circuit Installed Minimum load current 0.1 mA Residual current 0.01 mA Short-circuit protection Pulsed Overload protection Available DC operating voltage range 10 V...30 V Residual ripple 10% Reverse polarity protection for all electrical connections Electrical connection 1, connection type Plug Electrical connection 1, connection technology M8x1 A-coded as per EN 61076-2-104 Electrical connection 1, number of pins/wires 3 Electrical connection 1, type of mounting Snap-locking Screw-type lock not rotatable 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 152742. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
