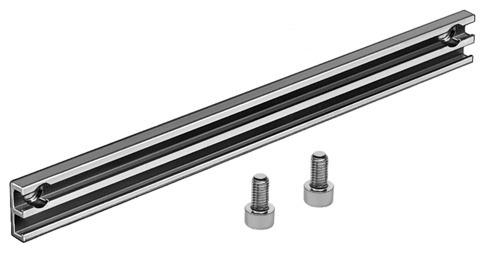

Reference imageConfirm configuration by manufacturer part number.
Festo
152745
Profile strip SLMS-25- -
The Festo 152745 is a sensor rail featuring a T-slot for proximity switches, engineered for use with a piston diameter of 25 mm and a maximum profile length of 2800 mm. Constructed from anodized wrought aluminum alloy with high-alloy steel screws, this component offers a CRC 2 moderate corrosion stress rating and VDMA24364-B2-L LABS conformity. It supports any mounting position and utilizes a through-hole and screw mounting type within an ambient temperature range of -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this RoHS-compliant industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 152745
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 152745.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- T-slot for proximity switch
- Max. prole length
- 2800 mm
- Mounting position
- Any
- for piston Ø
- Ø25
- Structural design
- Sensor rail
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...60 °C
- Type of mounting
- With through-hole and screw
- Prole material
- Wrought aluminum alloy | Anodized
- Note on materials
- RoHS compliant
- Material of screws
- High-alloy steel
- Official Festo technical specifications
- Design T-slot for proximity switch Max. prole length 2800 mm Mounting position Any for piston Ø Ø25 Structural design Sensor rail Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -20 °C...60 °C Type of mounting With through-hole and screw Prole material Wrought aluminum alloy Anodized Note on materials RoHS compliant Material of screws High-alloy steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 152745. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
