152790

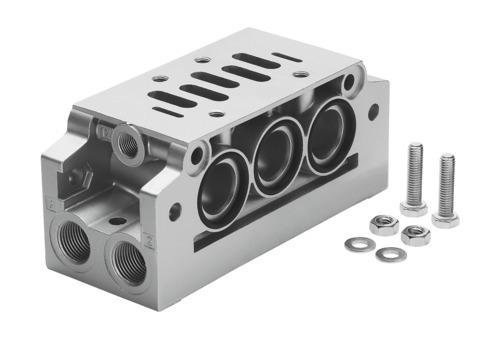

Name: Festo 152790 Manifold sub-base with 90° connections NAVW-3/8-2-ISO
Brand: Festo

Manifold sub-base with 90° connections NAVW-3/8-2-ISO

The Festo part number 152790 is an industrial component featuring a die-cast aluminum sub-base designed with through-hole mounting that supports any mounting position. Conforming to ISO 5599-1, this unit operates with compressed air according to ISO 8573-1:2010 [7:-:-] and allows ester oil below 0.1mg/m³ in accordance with ISO 8573-1:2010 [-:-:2]. It includes G3/8 pneumatic connections 1, 2, and 4 alongside G1/8 ports for pilot air 12/14, auxiliary pilot air 12 and 14, and pilot air 12 and 14, with a total product weight of 550 g, LABS conformity to VDMA24364-B2-L, and a medium and ambient temperature range of -10 °C to 60 °C. Submit your exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 152790
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 152790.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Conforms to standard: ISO 5599-1
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2]
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -20 °C...80 °C
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Product weight: 550 g
Sub-base mounting type: With through-hole
Type of mounting: With through-hole
Pilot air port 12/14: G1/8
Auxiliary pilot air port 12: G1/8
Auxiliary pilot air port 14: G1/8
Pilot air port 12: G1/8
Pilot air port 14: G1/8
Pneumatic connection 1: G3/8
Pneumatic connection 2: G3/8
Pneumatic connection 4: G3/8
Material of sub-base: Die-cast aluminum
Official Festo technical specifications: Mounting position Any Conforms to standard ISO 5599-1 Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2] LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -20 °C...80 °C Temperature of medium -10 °C...60 °C Ambient temperature -10 °C...60 °C Product weight 550 g Sub-base mounting type With through-hole Type of mounting With through-hole Pilot air port 12/14 G1/8 Auxiliary pilot air port 12 G1/8 Auxiliary pilot air port 14 G1/8 Pilot air port 12 G1/8 Pilot air port 14 G1/8 Pneumatic connection 1 G3/8 Pneumatic connection 2 G3/8 Pneumatic connection 4 G3/8 Material of sub-base Die-cast aluminum 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 152790. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
