152793

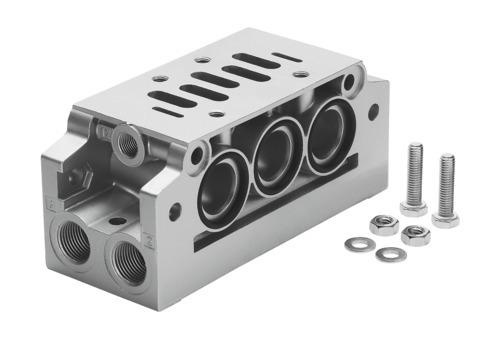

Name: Festo 152793 Manifold sub-base with 90° connections NAVW-3/8-NPT-2
Brand: Festo

Manifold sub-base with 90° connections NAVW-3/8-NPT-2

The Festo 152793 is an industrial component featuring a die-cast aluminum sub-base with a width of 135 mm and through-hole mounting for any position. It operates with compressed air according to ISO 8573-1:2010 [7:-:-] at pressures from 0 MPa to 1.6 MPa (0 bar to 16 bar) and accommodates ester oil levels below 0.1 mg/m³ per ISO 8573-1:2010 [-:-:2]. This unit includes 3/8 NPT pneumatic connections 1, 2, and 4, alongside 1/8 NPT ports for pilot air 12/14 and auxiliary pilot air ports 12 and 14, while maintaining VDMA24364-B2-L LABS conformity across a medium and ambient temperature range of -10 °C to 60 °C and storage temperatures from -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 152793
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 152793.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 135 mm
Mounting position: Any
Operating pressure: 0 MPa...1.6 MPa | 0 bar...16 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2]
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -20 °C...80 °C
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Sub-base mounting type: With through-hole
Type of mounting: With through-hole
Pilot air port 12/14: 1/8 NPT
Auxiliary pilot air port 12: 1/8 NPT
Auxiliary pilot air port 14: 1/8 NPT
Pilot air port 12: 1/8 NPT
Pilot air port 14: 1/8 NPT
Pneumatic connection 1: 3/8 NPT
Pneumatic connection 2: 3/8 NPT
Pneumatic connection 4: 3/8 NPT
Material of sub-base: Die-cast aluminum
Official Festo technical specifications: Width 135 mm Mounting position Any Operating pressure 0 MPa...1.6 MPa 0 bar...16 bar Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2] LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -20 °C...80 °C Temperature of medium -10 °C...60 °C Ambient temperature -10 °C...60 °C Sub-base mounting type With through-hole Type of mounting With through-hole Pilot air port 12/14 1/8 NPT Auxiliary pilot air port 12 1/8 NPT Auxiliary pilot air port 14 1/8 NPT Pilot air port 12 1/8 NPT Pilot air port 14 1/8 NPT Pneumatic connection 1 3/8 NPT Pneumatic connection 2 3/8 NPT Pneumatic connection 4 3/8 NPT Material of sub-base Die-cast aluminum 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 152793. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
