Festo
1529422

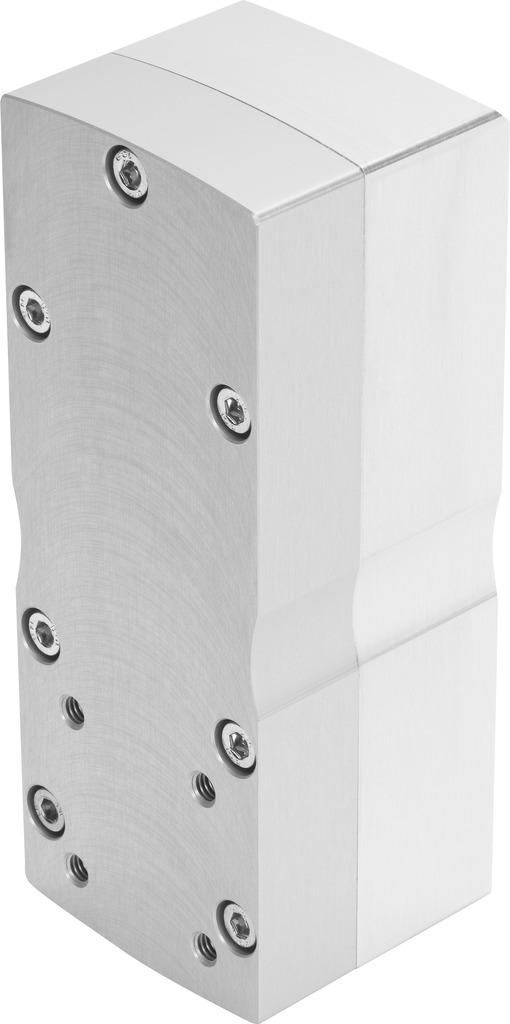

Parallel kit EAMM-U-60-D32-67A-91-S1
The Festo part number 1529422 is an industrial component featuring size 60 dimensions, a 1:1 gear ratio, and a transferable torque of 3 Nm with a 0.07 Nm no-load driving torque. This unit offers a maximum rotational speed of 6000 1/min, a mass moment of inertia of 26.7 kgmm², an IP65 degree of protection, and VDMA24364 zone III LABS conformity with RoHS-compliant materials. Weighing 1210 g, it incorporates a D32B actuator interface code and a 67A motor-in interface code, supporting any mounting position within an ambient temperature range of -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1529422
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1529422.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 60
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6000 1/min
- LABS (PWIS) conformity
- VDMA24364 zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 26.7 kgmm²
- No-load driving torque
- 0.07 Nm
- Transferable torque
- 3 Nm
- Product weight
- 1210 g
- Interface code, actuator
- D32B
- Interface code, motor in
- 67A
- Note on materials
- RoHS-compliant
- Official Festo technical specifications
- Size 60 Mounting position Any Gear ratio 1:1 Max. rotational speed 6000 1/min LABS (PWIS) conformity VDMA24364 zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95 % Degree of protection IP65 Ambient temperature -10 °C...60 °C Mass moment of inertia 26.7 kgmm² No-load driving torque 0.07 Nm Transferable torque 3 Nm Product weight 1210 g Interface code, actuator D32B Interface code, motor in 67A Note on materials RoHS-compliant Feb 3, 2024 –
