153026

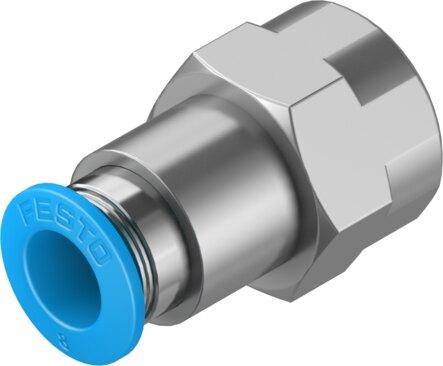

Name: Festo 153026 Push-in fitting QSF-1/4-8-B
Brand: Festo

Push-in fitting QSF-1/4-8-B

The Festo part number 153026 is a standard straight industrial component featuring a push-pull structural design, a 7 mm nominal width, and an 18.2 mm tubing insertion depth with an external hexagon SW17 mounting type. This component accommodates compressed air and liquid water operating media across an ambient temperature range of -10 °C to 80 °C, utilizing a screwed plug seal with a coating and a nominal tightening torque of 9 Nm with a ±20% tolerance. Each pack contains 10 units with a product weight of 24 g each, supporting a corrosion resistance class of 1 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 153026
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 153026.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 7 mm
Tubing insertion depth: 18.2 mm
Type of seal on screwed plug: Coating
Mounting position: Any
Design: Straight design
Pack size: 10
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...80 °C
Nominal tightening torque: 9 Nm
Tolerance for nominal tightening torque: ±20%
Product weight: 24 g
Type of mounting: External hexagon SW17
Pneumatic connection 1: Internal thread G1/4
Pneumatic connection 2: for pneumatic tubing outside diameter 8 mm
Releasing ring color: Blue
Note on materials: RoHS compliant
Housing material: Brass, nickel-plated
Releasing ring material: POM
Material of tubing seal: NBR
Material of tube retaining claw: high-alloy stainless steel
Official Festo technical specifications: Size Standard Nominal width 7 mm Tubing insertion depth 18.2 mm Type of seal on screwed plug Coating Mounting position Any Design Straight design Pack size 10 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -10 °C...80 °C Nominal tightening torque 9 Nm Tolerance for nominal tightening torque ±20% Product weight 24 g Type of mounting External hexagon SW17 Pneumatic connection 1 Internal thread G1/4 Pneumatic connection 2 for pneumatic tubing outside diameter 8 mm Releasing ring color Blue Note on materials RoHS compliant Housing material Brass, nickel-plated Releasing ring material POM Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 153026. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
