153030

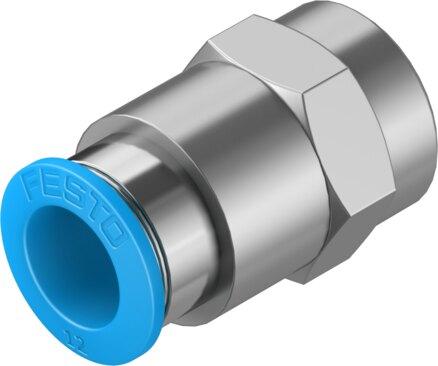

Name: Festo 153030 Push-in fitting QSF-3/8-12-B
Brand: Festo

Push-in fitting QSF-3/8-12-B

The Festo part number 153030 is a straight industrial component featuring an 11 mm nominal width, a 23.3 mm tubing insertion depth, and a push-pull structural design with a coated screwed plug seal. It operates with compressed air according to ISO 8573-1:2010 [7:-:-] or liquid, ice-free water, supporting an operating pressure of -0.95 bar to 6 bar across its entire temperature range and up to 14 bar in temperature-dependent conditions. Weighing 46 g with a nominal tightening torque of 15.5 Nm (plus or minus 20%), this standard-sized component is supplied in a pack size of 10 and maintains ISO Class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 153030
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 153030.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 11 mm
Tubing insertion depth: 23.3 mm
Type of seal on screwed plug: Coating
Mounting position: Any
Design: Straight design
Pack size: 10
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Ambient temperature: -10 °C...80 °C
Nominal tightening torque: 15.5 Nm
Tolerance for nominal tightening torque: ±20%
Product weight: 46 g
Type of mounting: External hexagon SW21
Pneumatic connection 1: Internal thread G3/8
Pneumatic connection 2: for pneumatic tubing outside diameter 12 mm
Releasing ring color: Blue
Note on materials: RoHS compliant
Housing material: Brass, nickel-plated
Releasing ring material: POM
Material of tubing seal: NBR
Official Festo technical specifications: Size Standard Nominal width 11 mm Tubing insertion depth 23.3 mm Type of seal on screwed plug Coating Mounting position Any Design Straight design Pack size 10 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14 Class 4 according to ISO 14644-1 Ambient temperature -10 °C...80 °C Nominal tightening torque 15.5 Nm Tolerance for nominal tightening torque ±20% Product weight 46 g Type of mounting External hexagon SW21 Pneumatic connection 1 Internal thread G3/8 Pneumatic connection 2 for pneumatic tubing outside diameter 12 mm Releasing ring color Blue Note on materials RoHS compliant Housing material Brass, nickel-plated Releasing ring material POM Material of tubing seal NBR 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 153030. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
