Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

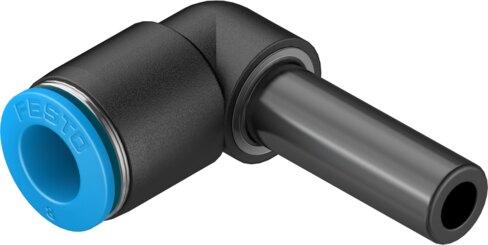

Reference imageConfirm configuration by manufacturer part number.
Festo
153058
Push-in L-connector QSL-8H
The Festo 153058 is an L-shaped industrial component featuring a push-pull structural design with a standard size, a 4.7 mm nominal width, and an 18.1 mm tubing insertion depth. Weighing 5.7 g and equipped with an 8 mm push-in sleeve and an 8 mm pneumatic tubing connection, this unit operates across any mounting position with compressed air or liquid water within a -10 °C to 80 °C ambient temperature range. This pack size of 10 components achieves ISO 14644-1 Class 4 cleanroom suitability alongside a CRC rating of 1 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153058
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153058.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4.7 mm
- Tubing insertion depth
- 18.1 mm
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 5.7 g
- Pneumatic connection 1
- Push-in sleeve Ø 8 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
- Official Festo technical specifications
- Size Standard Nominal width 4.7 mm Tubing insertion depth 18.1 mm Mounting position Any Design L-shape Pack size 10 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14 Class 4 according to ISO 14644-1 Ambient temperature -10 °C...80 °C Product weight 5.7 g Pneumatic connection 1 Push-in sleeve Ø 8 mm Pneumatic connection 2 for pneumatic tubing outside diameter 8 mm Releasing ring color Blue Note on materials RoHS compliant Housing material PBT Releasing ring material POM Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153058. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
