Festo
153068

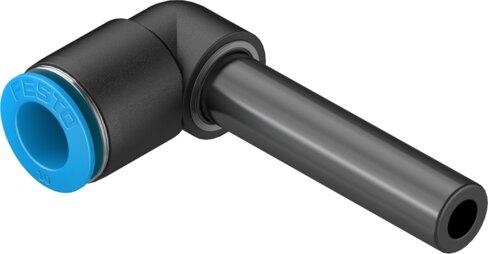

Push-in L-connector QSL-10HL
The Festo part number 153068 is an L-shape long industrial component featuring a 5.6 mm nominal width, a 20.2 mm tubing insertion depth, and a push-pull structural design with a blue releasing ring. It accommodates a 10 mm push-in sleeve and a 10 mm outside diameter pneumatic tubing, operating with compressed air or liquid water across an ambient temperature range of -10 °C to 80 °C. This standard size unit has a product weight of 11 g, offers any mounting position, and is sold in a pack size of 10. Submit part number 153068, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153068
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153068.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5.6 mm
- Tubing insertion depth
- 20.2 mm
- Mounting position
- Any
- Design
- L-shape, long
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 11 g
- Pneumatic connection 1
- Push-in sleeve Ø 10 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
- Official Festo technical specifications
- Size Standard Nominal width 5.6 mm Tubing insertion depth 20.2 mm Mounting position Any Design L-shape, long Pack size 10 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14 Class 4 according to ISO 14644-1 Ambient temperature -10 °C...80 °C Product weight 11 g Pneumatic connection 1 Push-in sleeve Ø 10 mm Pneumatic connection 2 for pneumatic tubing outside diameter 10 mm Releasing ring color Blue Note on materials RoHS compliant Housing material PBT Releasing ring material POM Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153068. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
