Name: Festo 153084 Push-in L-fitting, long QSLL-3/8-12
Brand: Festo

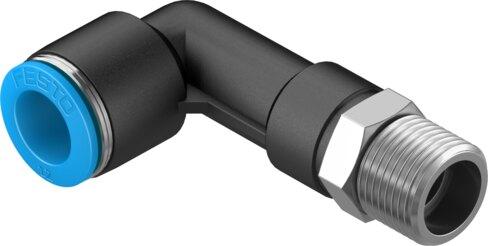

Push-in L-fitting, long QSLL-3/8-12

The Festo part number 153084 is a standard-sized, L-shaped long industrial component featuring a 10 mm nominal width, a 23.4 mm tubing insertion depth, and an R3/8 external thread pneumatic connection 1. Designed with a push-pull structural principle and a coated screwed plug seal, this component operates across a temperature-dependent pressure range of -13.775 psi to 203 psi and an ambient temperature range of -10 °C to 80 °C. Each pack contains 10 units with a product weight of 42 g each, featuring an external hexagon SW17 mounting type suitable for any mounting position with compressed air or liquid water media. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 153084
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 153084.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 10 mm
Tubing insertion depth: 23.4 mm
Type of seal on screwed plug: Coating
Mounting position: Any
Design: L-shape, long
Pack size: 10
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Ambient temperature: -10 °C...80 °C
Product weight: 42 g
Type of mounting: External hexagon SW17
Pneumatic connection 1: External thread R3/8
Pneumatic connection 2: for pneumatic tubing outside diameter 12 mm
Releasing ring color: Blue
Material of screwed plug: Brass, nickel-plated
Note on materials: RoHS compliant
Housing material: PBT
Releasing ring material: POM
Material of tubing seal: NBR
Material of tube retaining claw: high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 153084. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
