Festo
153165

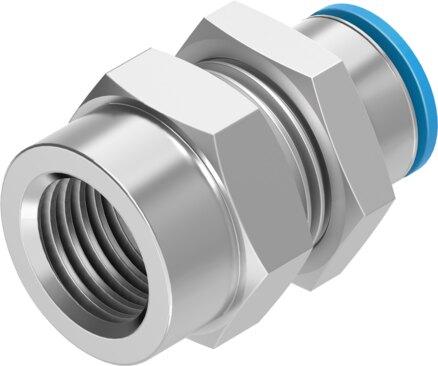

Bulkhead push-in fitting QSSF-1/8-8-B
The Festo 153165 is a standard bulkhead industrial component featuring a 7 mm nominal width and an 18.2 mm tubing insertion depth utilizing a push-pull structural design. This part operates with compressed air or liquid, ice-free water, handling pressures from -0.095 MPa to 1.4 MPa depending on temperature, and is mounted via an external hexagon SW19 using a nominal tightening torque of 7 Nm with a ±20% tolerance. Each pack contains 10 units with a product weight of 30 g each, an ambient temperature range of -10 °C to 80 °C, and ISO Class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153165
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153165.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 7 mm
- Tubing insertion depth
- 18.2 mm
- Mounting position
- Any
- Design
- Bulkhead
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 7 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 30 g
- Type of mounting
- External hexagon SW19
- Pneumatic connection 1
- Internal thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
- Nut material
- Brass, nickel-plated
- Material of tubing seal
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153165. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
