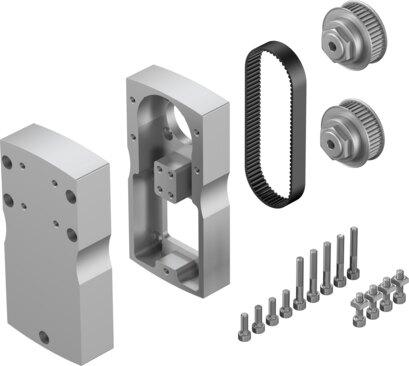

Reference imageConfirm configuration by manufacturer part number.
Festo
1532949
Parallel kit EAMM-U-110-D60-80G-120
The Festo size 110 industrial component, part number 1532949, features a 1:1 gear ratio, a 25 Nm transferable torque, and a maximum rotational speed of 5000 rpm with a 0.3 Nm no-load driving torque. This RoHS compliant unit weighs 5120 g, includes a 799 kgmm² mass moment of inertia, utilizes actuator interface code D60B and motor-in interface code 80G, and achieves IP40 protection with VDMA24364 Zone III LABS conformity. It operates within an ambient temperature range of -10 °C to 60 °C, tolerates storage temperatures from -25 °C to 60 °C and relative air humidity of 0 to 95%, and supports any mounting position. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1532949
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1532949.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 110
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 799 kgmm²
- No-load driving torque
- 0.3 Nm
- Transferable torque
- 25 Nm
- Product weight
- 5120 g
- Interface code, actuator
- D60B
- Interface code, motor in
- 80G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1532949. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
