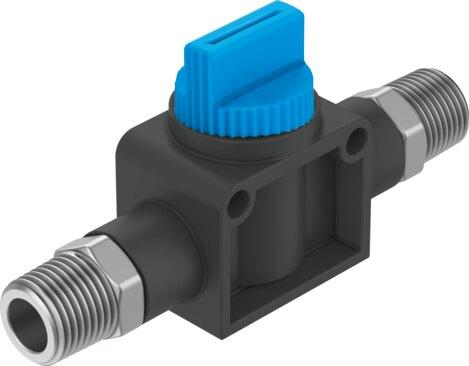

Reference imageConfirm configuration by manufacturer part number.
Festo
153297
Shut-off valve HE-3-1/4-1/4
The Festo 153297 is a 3/2-way bistable industrial component featuring a piston gate valve structural design and direct control with a non-reversible flow direction. Built with a PBT-reinforced housing and soft sealing principle, it operates within a pressure range of -0.95 bar to 10 bar and handles a normal nominal flow rate of 625.5 l/min using compressed air as per ISO 8573-1:2010 [7:-:-]. This unit includes an exhaust function, manual actuation type, R1/4 pneumatic connections on ports 1 and 2, and accommodates mounting via through-hole or thread in any position. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153297
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153297.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, bistable
- Selection of additional function
- with exhaust function
- Pneumatic connection 1
- R1/4
- Pneumatic connection 2
- R1/4
- Actuation type
- Manual
- Type of mounting
- Alternatively: | Direct mounting via through-hole | Direct fastening via thread
- Normal nominal ow rate (normalized to DIN 1343)
- 625.5 l/min
- Nominal width
- 4.1 mm
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Ambient temperature
- 0 °C...60 °C
- Housing material
- PBT-reinforced
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Structural design
- Piston gate valve
- Type of control
- directly
- Flow direction
- Non-reversible
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- 0 °C...60 °C
- Product weight
- 58 g
- Pneumatic connection 3
- Not ducted
- Material of screwed plug
- Brass, nickel-plated
- Note on materials
- RoHS compliant
- Seals material
- NBR
