Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

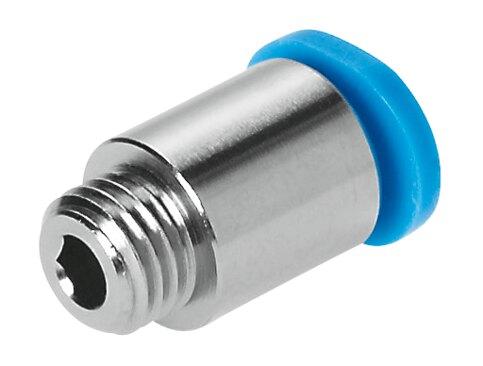

Reference imageConfirm configuration by manufacturer part number.
Festo
153320
Push-in fitting QSMP-M6X0.75-4
The Festo part number 153320 is a mini straight industrial component featuring a 2.5 mm nominal width, an M6x0.75 external thread pneumatic connection 1, and an internal hex AF2.5 mounting type. This push-pull design incorporates a sealing ring on the screwed plug, allows for any mounting position, and accommodates an 11.5 mm tubing insertion depth with a product weight of 2.7 g. Operating with compressed air as per ISO 8573-1:2010 [7:-:-], it supports lubricated operation across an ambient temperature range of -10 °C to 80 °C and a nominal tightening torque of 0.9 Nm with a ±10% tolerance. This pack size of 10 components achieves a corrosion resistance class of 1 and VDMA24364-B1/B2-L LABS conformity while delivering an operating pressure of -0.095 MPa to 0.6 MPa across the entire temperature range and -0.095 MPa to 1.4 MPa for temperature-dependent conditions. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153320
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153320.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 2.5 mm
- Tubing insertion depth
- 11.5 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 0.9 Nm
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 2.7 g
- Type of mounting
- Internal hex AF2.5
- Pneumatic connection 1
- External thread M6x0.75
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153320. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
