Festo
153321

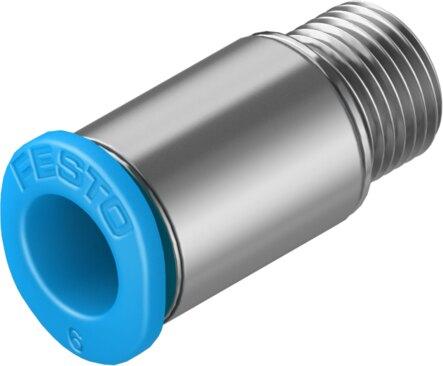

Push-in fitting QSM-M7-6-I
The Festo 153321 is a mini straight industrial component featuring a 4.1 mm nominal width, a 12 mm tubing insertion depth, and an M7 external thread pneumatic connection 1 with a sealing ring on the screwed plug. Operating via the push-pull principle, this unit handles an operating pressure of -0.095 MPa to 0.6 MPa across its entire temperature range, and -0.095 MPa to 1.4 MPa under temperature-dependent conditions using compressed air per ISO 8573-1:2010 [7:-:-] with lubricated operation possible. Designed with any mounting position, an internal hexagon AF 4 mounting type, a nominal tightening torque of 2.2 Nm with a ±20% tolerance, and a product weight of 6.4 g, it functions within an ambient temperature range of -10 °C to 80 °C, a corrosion resistance class of 1, and VDMA24364-B1/B2-L LABS conformity. This pack size of 10 is available for quotation; submit your exact part number, quantity, and application requirements to receive a formal RFQ response.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153321
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153321.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 4.1 mm
- Tubing insertion depth
- 12 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 2.2 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 6.4 g
- Type of mounting
- Internal hexagon, AF 4
- Pneumatic connection 1
- External thread M7
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
