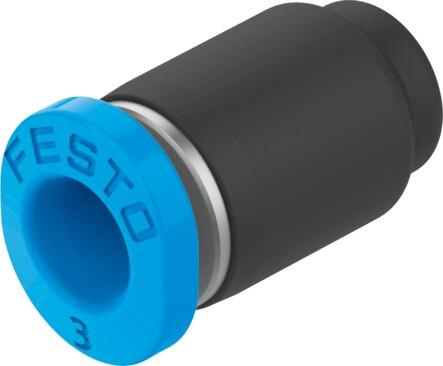

Reference imageConfirm configuration by manufacturer part number.
Festo
153381
Push-in cap QSMC-3
The Festo 153381 is a mini blanking plug utilizing a push-pull structural design for 3 mm outside diameter pneumatic tubing with a 9.5 mm insertion depth and a blue releasing ring. Featuring a PBT housing, POM releasing ring, and NBR tubing seal, this component operates on compressed air conforming to ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -10 °C to 80 °C with a product weight of 0.5 g. It provides a corrosion resistance class of 1, VDMA24364-B1/B2-L LABS conformity, RoHS compliance, and supports lubricated operation alongside pressure ranges from -0.095 MPa to 1.4 MPa depending on temperature. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153381
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153381.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Tubing insertion depth
- 9.5 mm
- Mounting position
- Any
- Design
- Blanking plug
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 0.5 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 3 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
