Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

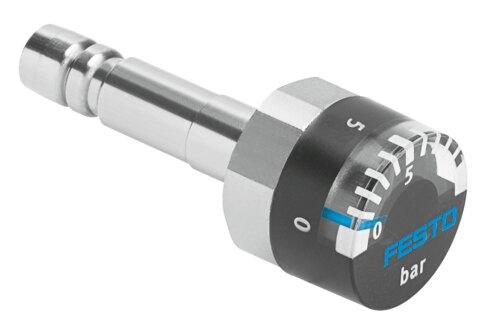

Reference imageConfirm configuration by manufacturer part number.
Festo
153383
Pressure gauge MA-15-10-QS-4
The Festo 153383 is a Bourdon tube pressure gauge without a measuring mechanism featuring a nominal size of 15 and a display range of 0 bar to 10 bar. Designed for in-line installation with a centered rear QS-4 pneumatic connection, this industrial component operates within a pressure range of 0 MPa to 1 MPa, 0 bar to 10 bar, or 0 psi to 145 psi for inert gases and neutral liquids excluding acetylene and oxygen. The unit incorporates a steel housing, a polycarbonate inspection window, and brass media-contacting materials and screwed plugs, delivering an IP53 degree of protection and a measurement accuracy class of 5. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153383
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153383.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...10 bar
- Pressure gauge nominal size
- 15
- Structural design
- Bourdon tube pressure gauge without measuring mechanism
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 5
- Degree of protection
- IP53
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- QS-4
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- Steel
- Inspection window material
- PC
- Housing colour
- Black
- Product weight
- 10 g
- Scale
- Single scale | bar (außen)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153383. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
