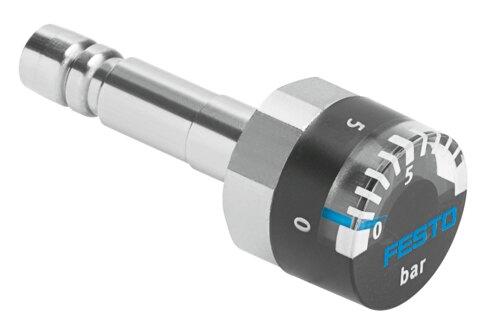

Reference imageConfirm configuration by manufacturer part number.
Festo
153384
Pressure gauge MA-15-10-QS-6
The Festo 153384 is a Bourdon tube pressure gauge without a measuring mechanism featuring a nominal size of 15, a centered rear-side QS-6 pneumatic connection, and a 0 bar to 10 bar display range for inert gases and neutral liquids excluding acetylene and oxygen. Designed for in-line installation, this industrial component operates within a temperature range of -20 °C to 60 °C for both the ambient environment and the medium, utilizing brass media-contact and screwed plug materials alongside a steel housing and a polycarbonate inspection window. It provides an IP53 degree of protection, a measurement accuracy class of 5, an intermittent load factor of 0.66, and RoHS-compliant construction with VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153384
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153384.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...10 bar
- Pressure gauge nominal size
- 15
- Structural design
- Bourdon tube pressure gauge without measuring mechanism
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 5
- Degree of protection
- IP53
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- QS-6
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- Steel
- Inspection window material
- PC
- Housing colour
- Black
- Product weight
- 10 g
- Scale
- Single scale | bar (außen)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153384. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
