Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

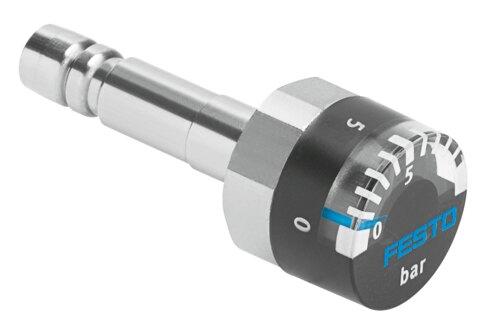

Reference imageConfirm configuration by manufacturer part number.
Festo
153385
Pressure gauge MA-15-10-QS-8
The Festo part number 153385 is an industrial component featuring a Bourdon tube pressure gauge without a measuring mechanism, nominal size 15, and a display range of 0 bar to 10 bar with a measurement accuracy class of 5. This in-line installation unit utilizes a centered rear-side QS-8 pneumatic connection, brass media-contacting materials and screwed plug, a steel housing, and a polycarbonate inspection window rated to IP53 protection. Operating within ambient and medium temperatures from -20 °C to 60 °C, the assembly accommodates inert gases and neutral liquids up to 1 MPa, 10 bar, or 145 psi, while excluding acetylene and oxygen per VDMA24364-B2-L LABS conformity and RoHS material compliance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153385
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153385.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...10 bar
- Pressure gauge nominal size
- 15
- Structural design
- Bourdon tube pressure gauge without measuring mechanism
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 5
- Degree of protection
- IP53
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- QS-8
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- Steel
- Inspection window material
- PC
- Housing colour
- Black
- Product weight
- 10 g
- Scale
- Single scale | bar (außen)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153385. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
