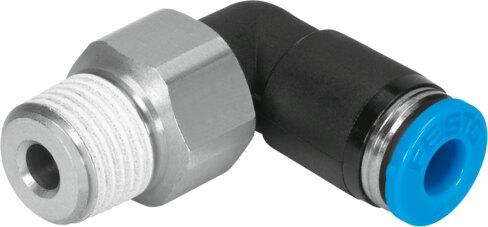

Name: Festo 153410 Push-in L-fitting, rotatable QSRL-1/8-4
Brand: Festo

Push-in L-fitting, rotatable QSRL-1/8-4

The Festo part number 153410 is a standard, L-shaped industrial component featuring a 1.8 mm nominal width and a 15 mm tubing insertion depth utilizing a push-pull structural design with a coated screwed plug seal. This unit operates within a temperature-dependent pressure range of -0.095 MPa to 1.4 MPa and an ambient temperature range of 0 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-], accommodating lubricated operation with a maximum rotational speed of 500 rpm. Weighing 15 g with a corrosion resistance class of 1 and a nominal tightening torque of 7 Nm (±20%), it supports any mounting position. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 153410
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 153410.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 1.8 mm
Tubing insertion depth: 15 mm
Type of seal on screwed plug: Coating
Mounting position: Any
Design: L-shape
Pack size: 1
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
Max. rotational speed: 500 rpm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: 0 °C...60 °C
Max. radial torque: 0.006 Nm
Nominal tightening torque: 7 Nm
Tolerance for nominal tightening torque: ±20%
Product weight: 15 g
Type of mounting: External hexagon SW12
Pneumatic connection 1: External thread R1/8
Pneumatic connection 2: for pneumatic tubing outside diameter 4 mm
Releasing ring color: Blue
Material of screwed plug: Brass, nickel-plated
Note on materials: RoHS compliant
Housing material: PBT
Releasing ring material: POM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 153410. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
