Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
153423

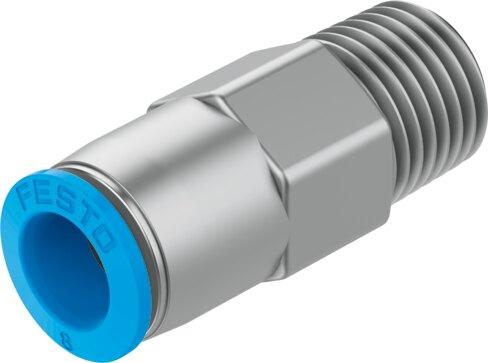

Push-in fitting, self-sealing QSK-1/4-8
This Festo industrial component, part number 153423, features a straight design with a standard size, a 4.3 mm nominal width, and an 18.5 mm tubing insertion depth utilizing the push-pull principle. It operates with compressed air as per ISO 8573-1:2010 [7:-:-], supporting lubricated operation across an ambient temperature range of -10 °C to 80 °C and an operating pressure from -0.95 bar to 6 bar across the entire temperature range. The screwed plug utilizes a coating seal with a nominal tightening torque of 9 Nm at a ±20% tolerance, providing a corrosion resistance class of 1 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153423
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153423.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4.3 mm
- Approved tubing type
- PAN- | PAN-MF- | PAN-R- | PAN-V0- | PEN- | PFAN- | PLN- | PTFEN- | PUN- | PUN-CM- | PUN-DUO- | PUN-H- | PUN-H-DUO- | PUN-S- | PUN-S-DUO- | PUN-V0-
- Tubing insertion depth
- 18.5 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 9 Nm
- Tolerance for nominal tightening torque
- ±20%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153423. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
