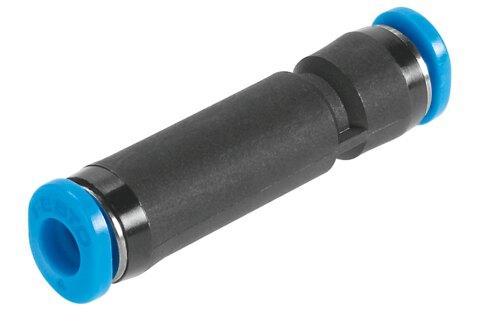

Reference imageConfirm configuration by manufacturer part number.
Festo
153439
Push-in connector, self-sealing QSMK-4
The Festo 153439 is a standard straight-design industrial component utilizing a push-pull structural design with a 1.6 mm nominal width and a 3.5 g product weight. This part features pneumatic connection 1 and pneumatic connection 2 for 4 mm outside diameter pneumatic tubing, supporting an 11.5 mm tubing insertion depth and any mounting position. It operates with compressed air per ISO 8573-1:2010 [7:-:-], accommodating lubricated operation with an operating pressure ranging from -0.095 MPa to 1.4 MPa depending on temperature and an ambient temperature range of -10 °C to 80 °C. Approved for PAN-, PAN-MF-, PAN-R-, PAN-V0-, PEN-, PFAN-, PLN-, PTFEN-, PUN-, PUN-CM-, PUN-DUO-, PUN-H-, PUN-H-DUO-, PUN-S-, PUN-S-DUO-, and PUN-V0- tubing types, it holds a corrosion resistance class of 1 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153439
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153439.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 1.6 mm
- Approved tubing type
- PAN- | PAN-MF- | PAN-R- | PAN-V0- | PEN- | PFAN- | PLN- | PTFEN- | PUN- | PUN-CM- | PUN-DUO- | PUN-H- | PUN-H-DUO- | PUN-S- | PUN-S-DUO- | PUN-V0-
- Tubing insertion depth
- 11.5 mm
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 3.5 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 4 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
