Festo
153456

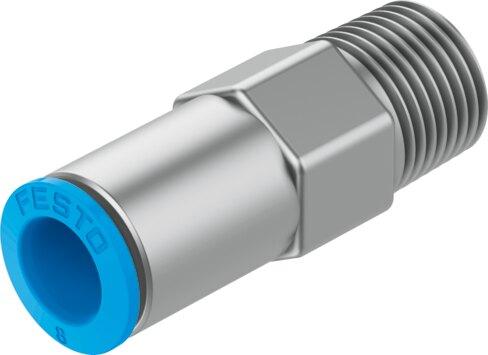

Non return valve HA-3/8-QS-10
The Festo 153456 is a screw-in industrial component featuring a non-return valve function with an R3/8 pneumatic connection on port 1 and a QS-10 connection on port 2. Constructed from silver anodized aluminum with a product weight of 47 g, it operates within a pressure range of -1 bar to 10 bar and an ambient temperature of 0 °C to 60 °C, delivering a normal nominal flow rate of 1740 l/min using compressed air as per ISO 8573-1:2010 [7:-:-]. This RoHS compliant unit requires oil lubrication for further use and achieves a minimum opening differential pressure of 0.1 bar alongside a minimum closing differential pressure of 0.2 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153456
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153456.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Non-return function
- Pneumatic connection 1
- R3/8
- Pneumatic connection 2
- QS-10
- Type of mounting
- Screw-in
- Normal nominal ow rate (normalized to DIN 1343)
- 1740 l/min
- Operating pressure
- -1 bar...10 bar
- Ambient temperature
- 0 °C...60 °C
- Housing material
- Anodized aluminum
- Housing colour
- Silver
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Min. differential pressure, opening
- 0.1 bar
- Min. differential pressure, closing
- 0.2 bar
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 47 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153456. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
