Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

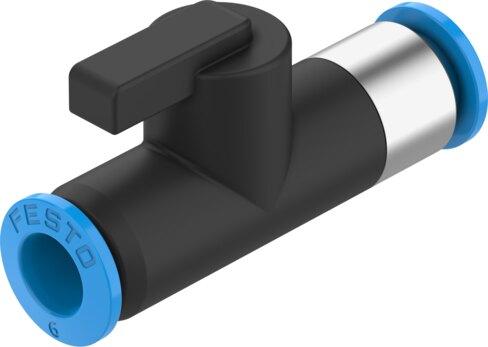

Reference imageConfirm configuration by manufacturer part number.
Festo
153484
Ball valve QH-QS-6
The Festo 153484 is a 2/2-way bistable manual ball valve featuring QS-6 pneumatic connections for both port 1 and port 2 in an in-line installation design. Constructed with a PBTP housing and a soft sealing principle, this 12 g industrial component delivers a normal nominal flow rate of 533 l/min at a nominal width of 4 mm across an operating pressure range of -1 bar to 10 bar. It operates with compressed air per ISO 8573-1:2010 [7:-:-] within an ambient temperature range of 0 °C to 60 °C, allows oil lubrication, and complies with RoHS and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153484
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153484.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, bistable
- Pneumatic connection 1
- QS-6
- Pneumatic connection 2
- QS-6
- Actuation type
- Manual
- Type of mounting
- In-line installation
- Normal nominal ow rate (normalized to DIN 1343)
- 533 l/min
- Nominal width
- 4 mm
- Operating pressure
- -0.1 MPa...1 MPa | -1 bar...10 bar
- Ambient temperature
- 0 °C...60 °C
- Housing material
- PBTP
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Sealing principle
- Soft
- Structural design
- Ball valve
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 12 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153484. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
