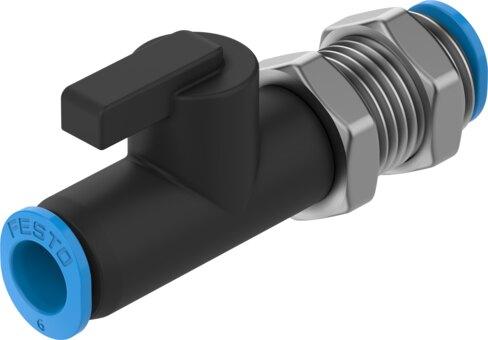

Reference imageConfirm configuration by manufacturer part number.
Festo
153485
Ball valve QHS-QS-6
The Festo 153485 is a 2/2-way bistable manual ball valve featuring QS-6 pneumatic connections at both ports and a nominal width of 4 mm. Built with a PBTP housing, a soft sealing principle, and a locknut mounting type, this component weighs 16.5 g and delivers a normal nominal flow rate of 528 l/min under an operating pressure range of -1 bar to 10 bar. It operates on compressed air meeting ISO 8573-1:2010 [7:-:-] standards within an ambient temperature range of 0 °C to 60 °C, accommodates oil lubrication, complies with RoHS materials notes, and conforms to VDMA24364-B1/B2-L LABS (PWIS) requirements. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153485
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153485.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, bistable
- Pneumatic connection 1
- QS-6
- Pneumatic connection 2
- QS-6
- Actuation type
- Manual
- Type of mounting
- With locknut
- Normal nominal ow rate (normalized to DIN 1343)
- 528 l/min
- Nominal width
- 4 mm
- Operating pressure
- -0.1 MPa...1 MPa | -1 bar...10 bar
- Ambient temperature
- 0 °C...60 °C
- Housing material
- PBTP
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Sealing principle
- Soft
- Structural design
- Ball valve
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 16.5 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153485. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
