Festo
153487

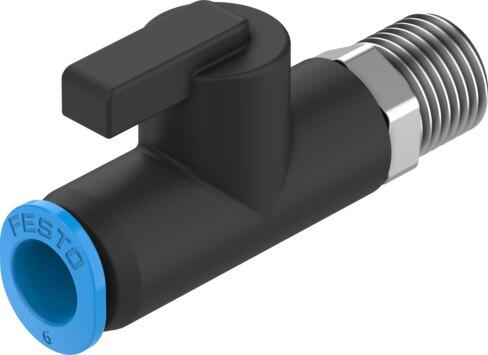

Ball valve QH-QS-6-1/8
The Festo 153487 is a 2/2-way bistable manual ball valve featuring an R1/8 pneumatic connection 1 and a QS-6 pneumatic connection 2. Built with a PBTP housing, a nickel-plated brass screwed plug, and soft sealing, this screw-in component delivers a nominal width of 2.5 mm and a normal nominal flow rate of 560 l/min under an operating pressure range of -1 bar to 10 bar. It operates within an ambient temperature range of 0 °C to 60 °C using compressed air conforming to ISO 8573-1:2010 [7:-:-], accommodates optional oil lubrication, complies with VDMA24364-B1/B2-L LABS conformity and RoHS material standards, and weighs 14 g. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153487
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153487.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, bistable
- Pneumatic connection 1
- R1/8
- Pneumatic connection 2
- QS-6
- Actuation type
- Manual
- Type of mounting
- Screw-in
- Normal nominal ow rate (normalized to DIN 1343)
- 560 l/min
- Nominal width
- 2.5 mm
- Operating pressure
- -0.1 MPa...1 MPa | -1 bar...10 bar
- Ambient temperature
- 0 °C...60 °C
- Housing material
- PBTP
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Sealing principle
- Soft
- Structural design
- Ball valve
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 14 g
- Material of screwed plug
- Brass, nickel-plated
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153487. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
