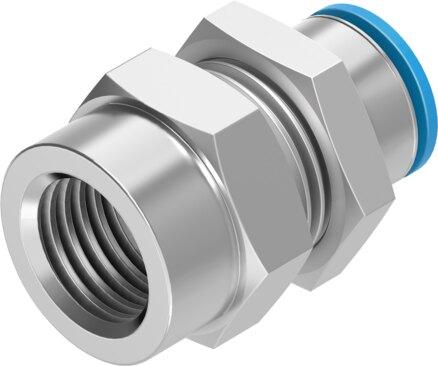

Reference imageConfirm configuration by manufacturer part number.
Festo
153768
Bulkhead push-in fitting QSSF-1/8-3/16-U
The Festo 153768 is a standard bulkhead industrial component featuring a 4 mm nominal width, push-pull structural design, and an 11/16 external hexagon mounting type. This part operates with compressed air per ISO 8573-1:2010 [7:-:-] across a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar / -13.775 psi to 145 psi) and handles ambient temperatures between -10 °C and 60 °C (14 °F to 140 °F). Equipped with an internal thread 1/8 NPT pneumatic connection 1 and a connection 2 for 3/16" outside diameter pneumatic tubing, the unit includes a coated screwed plug seal and a gray releasing ring. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153768
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153768.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Bulkhead
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 28 g
- Type of mounting
- External hexagon 11/16
- Pneumatic connection 1
- Internal thread 1/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/16"
- Ambient temperature Fahrenheit
- 14 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass | Nickel-plated
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153768. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
