Festo
153770

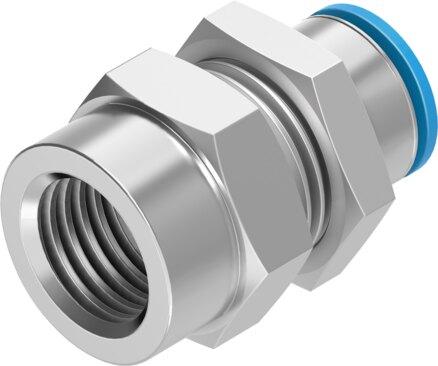

Bulkhead push-in fitting QSSF-1/8-1/4-U
The Festo 153770 is a standard bulkhead industrial component featuring a push-pull structural design with a 5.3 mm nominal width and a coated screwed plug seal. This unit accommodates compressed air media per ISO 8573-1:2010 [7:-:-] across an operating pressure range of -0.95 bar to 10 bar and an ambient temperature range of -10 °C to 60 °C. Designed with a 1/8 NPT internal thread for pneumatic connection 1 and a 1/4" outer diameter connection for pneumatic tubing 2, it weighs 28 g and includes an 11/16 external hexagon mounting type with a gray releasing ring. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this pack size 1 component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153770
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153770.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5.3 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Bulkhead
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 28 g
- Type of mounting
- External hexagon 11/16
- Pneumatic connection 1
- Internal thread 1/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature Fahrenheit
- 14 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass | Nickel-plated
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153770. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
