Festo
153815

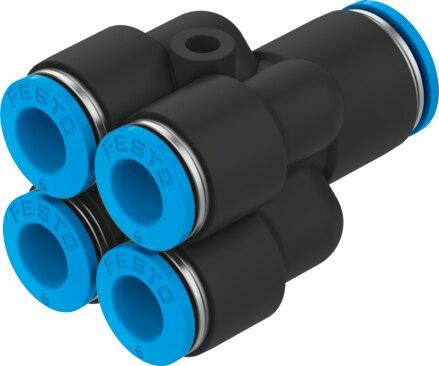

Multiple distributor QSQ-1/4T-5/32-U
The Festo 153815 is a standard industrial component featuring one 1/4" supply line and four 5/32" outlets utilizing the push-pull structural design with a gray releasing ring. Operating within a pressure range of -0.95 bar to 10 bar (-13.775 psi to 145 psi) and an ambient temperature range of -10 °C to 60 °C (14 °F to 140 °F), this RoHS compliant part weighs 14 g and accommodates compressed air as per ISO 8573-1:2010 [7:-:-] with optional lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153815
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153815.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 3.1 mm
- Mounting position
- Any
- Structural design
- Push-pull principle
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 14 g
- No. of outlets
- 4
- No. of supply lines
- 1
- Pneumatic connection 1
- For pneumatic tubing outside diameter 1/4"
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Ambient temperature Fahrenheit
- 14 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153815. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
