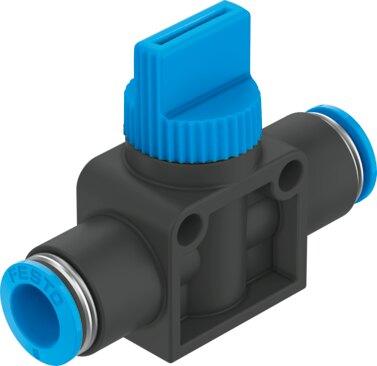

Reference imageConfirm configuration by manufacturer part number.
Festo
153977
Shut-off valve HE-3-QS-5/16-U
The Festo 153977 is a bistable 3/2-way industrial component featuring direct manual actuation, a piston gate valve structural design, and an unthrottlable exhaust function. Constructed with a reinforced PBT housing and a soft sealing principle, this non-reversible unit delivers a nominal width of 3.5 mm and a normal nominal flow rate of 415.8 l/min under operating pressures ranging from -0.95 bar to 10 bar. It accommodates compressed air conforming to ISO 8573-1:2010 [7:-:-] with optional oil lubrication, features a moderate corrosion resistance class (CRC 2), and supports either direct through-hole mounting or in-line installation in any position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153977
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153977.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, bistable
- Selection of additional function
- with exhaust function
- Pneumatic connection 1
- QS-5/16
- Pneumatic connection 2
- QS-5/16
- Actuation type
- Manual
- Type of mounting
- Alternatively: | Direct mounting via through-hole | In-line installation
- Normal nominal ow rate (normalized to DIN 1343)
- 415.8 l/min
- Nominal width
- 3.5 mm
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Ambient temperature
- 0 °C...60 °C
- Housing material
- PBT-reinforced
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Structural design
- Piston gate valve
- Type of control
- directly
- Flow direction
- Non-reversible
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- 0 °C...60 °C
- Product weight
- 26 g
- Pneumatic connection 3
- Not ducted
- Note on materials
- RoHS compliant
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 153977. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
