Festo
153978

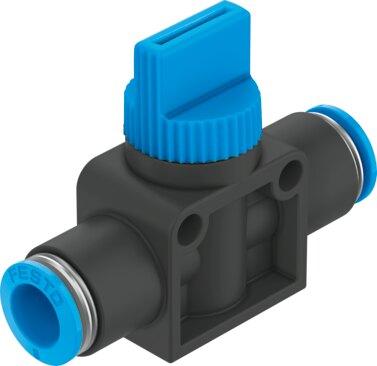

Shut-off valve HE-3-QS-3/8-U
The Festo 153978 is a bistable 3/2-way piston gate valve featuring manual actuation and direct control with an unthrottled exhaust function. Constructed from reinforced PBT housing with a soft sealing principle, this component operates within a pressure range of -0.95 bar to 10 bar and supports a normal nominal flow rate of 707.4 l/min through QS-3/8 pneumatic connections. It offers installation flexibility via direct through-hole mounting or in-line installation in any mounting position for compressed air media conforming to ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153978
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153978.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, bistable
- Selection of additional function
- with exhaust function
- Pneumatic connection 1
- QS-3/8
- Pneumatic connection 2
- QS-3/8
- Actuation type
- Manual
- Type of mounting
- Alternatively: | Direct mounting via through-hole | In-line installation
- Normal nominal ow rate (normalized to DIN 1343)
- 707.4 l/min
- Nominal width
- 4.5 mm
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Ambient temperature
- 0 °C...60 °C
- Housing material
- PBT-reinforced
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Structural design
- Piston gate valve
- Type of control
- directly
- Flow direction
- Non-reversible
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- 0 °C...60 °C
- Product weight
- 42 g
- Pneumatic connection 3
- Not ducted
- Note on materials
- RoHS compliant
- Seals material
- NBR
