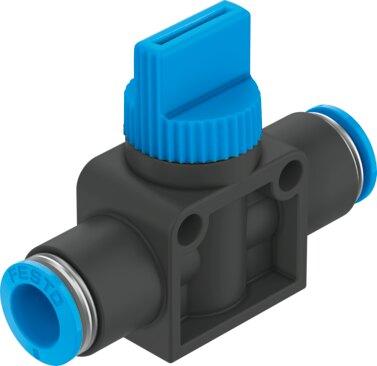

Reference imageConfirm configuration by manufacturer part number.
Festo
153983
Shut-off valve HE-2-QS-3/8-U
The Festo 153983 is a directly controlled 2/2-way bistable piston gate valve featuring QS-3/8 pneumatic connections at both ports and a nominal width of 4.5 mm. Constructed with a reinforced PBT housing and a soft sealing principle, this component delivers a normal nominal flow rate of 707.4 l/min across an operating pressure range of -0.95 bar to 10 bar. It supports reversible flow direction, any mounting position via through-hole direct mounting or in-line installation, and operates within an ambient temperature range of 0 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 153983
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 153983.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, bistable
- Pneumatic connection 1
- QS-3/8
- Pneumatic connection 2
- QS-3/8
- Actuation type
- Manual
- Type of mounting
- Alternatively: | Direct mounting via through-hole | In-line installation
- Normal nominal ow rate (normalized to DIN 1343)
- 707.4 l/min
- Nominal width
- 4.5 mm
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Ambient temperature
- 0 °C...60 °C
- Housing material
- PBT-reinforced
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Sealing principle
- Soft
- Mounting position
- Any
- Structural design
- Piston gate valve
- Type of control
- directly
- Flow direction
- Reversible
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- 0 °C...60 °C
- Product weight
- 42 g
- Note on materials
- RoHS compliant
- Seals material
- NBR
